Yealink MVC S40-CSU-000 Microsoft Teams Rooms System

A complete Teams Rooms kit: MCore Pro, MTouch E2 and SmartVision 40 with dual 48MP lenses.

The Yealink MVC S40 is a Microsoft Teams Rooms system for small to medium rooms, comprising the MCore Pro mini-PC, the MTouch E2 touch panel and the SmartVision 40 audio and video machine – which carries two 48MP lenses, a 120 degree pickup range and AI functions including IntelliFocus and Multi-stream IntelliFrame.

Three components as one certified Teams Rooms system
SmartVision 40: two 48MP lenses, 120 degree pickup
IntelliFocus, Multi-stream IntelliFrame and Video Fence

+ Add to Enquiry Hubungi Kami

SPECIFICATIONS

System Yealink MVC S40, Microsoft Teams Rooms

Compute MCore Pro mini-PC

Control MTouch E2 touch panel

Audio and video SmartVision 40, 2x 48MP lenses, 120 degree pickup

AI IntelliFocus, Multi-stream IntelliFrame, Video Fence

Description

Microsoft Teams Rooms is not simply Teams on a PC in a meeting room. It is a certified category: Microsoft specify what the hardware must do, the room runs a dedicated console interface rather than a desktop, and it is managed centrally alongside the rest of the tenant. The practical consequence is that a room either joins its meeting with one tap or it does not, and the difference is whether the hardware was built for it.

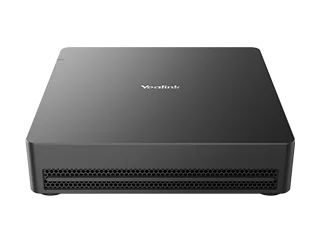

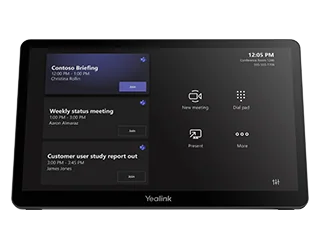

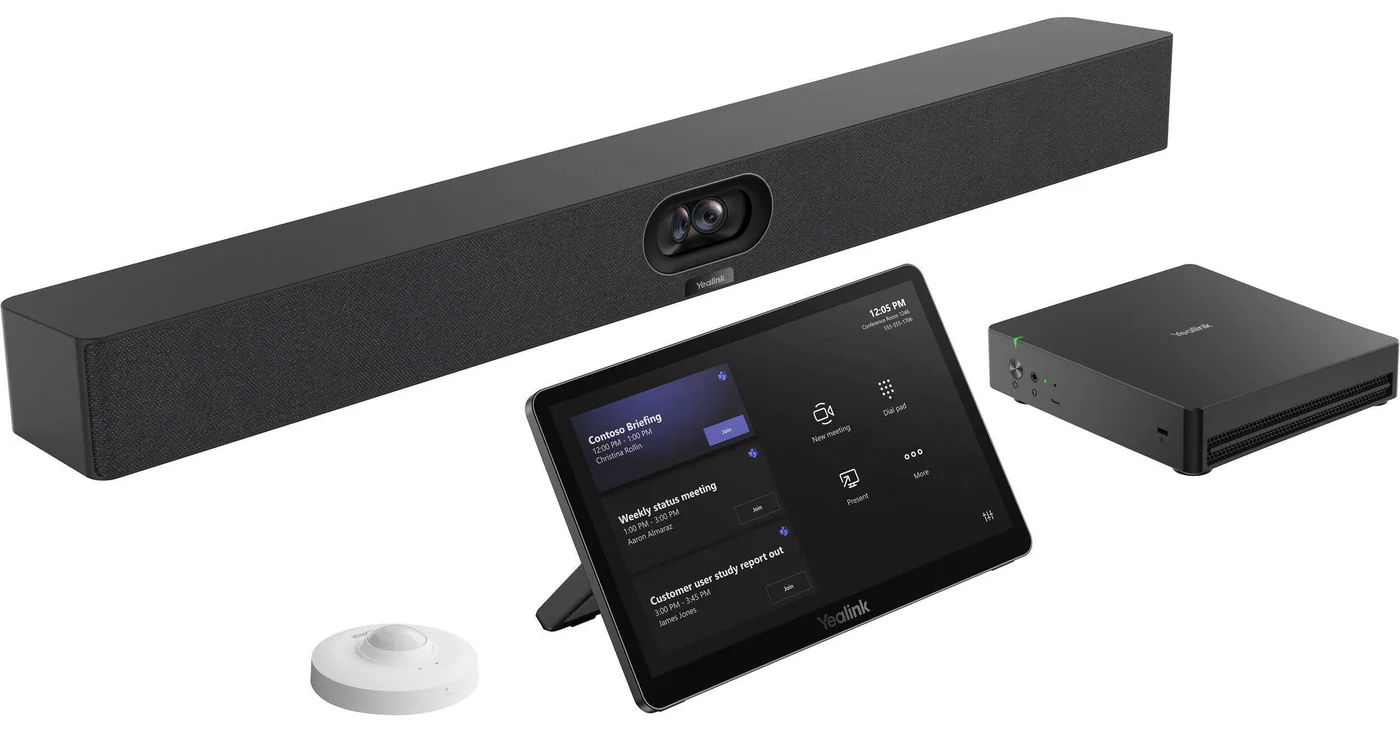

The MVC S40 is Yealink's certified system for small to medium rooms and comes as three purpose-built parts. The MCore Pro is the mini-PC that runs the Teams Rooms software - a compute appliance rather than a repurposed desktop, which matters because it is the thing that has to boot reliably every morning for years. The MTouch E2 is the touch console on the table, which is what people actually operate: join, mute, share, end. And the SmartVision 40 is the audio and video unit that does the seeing and hearing.

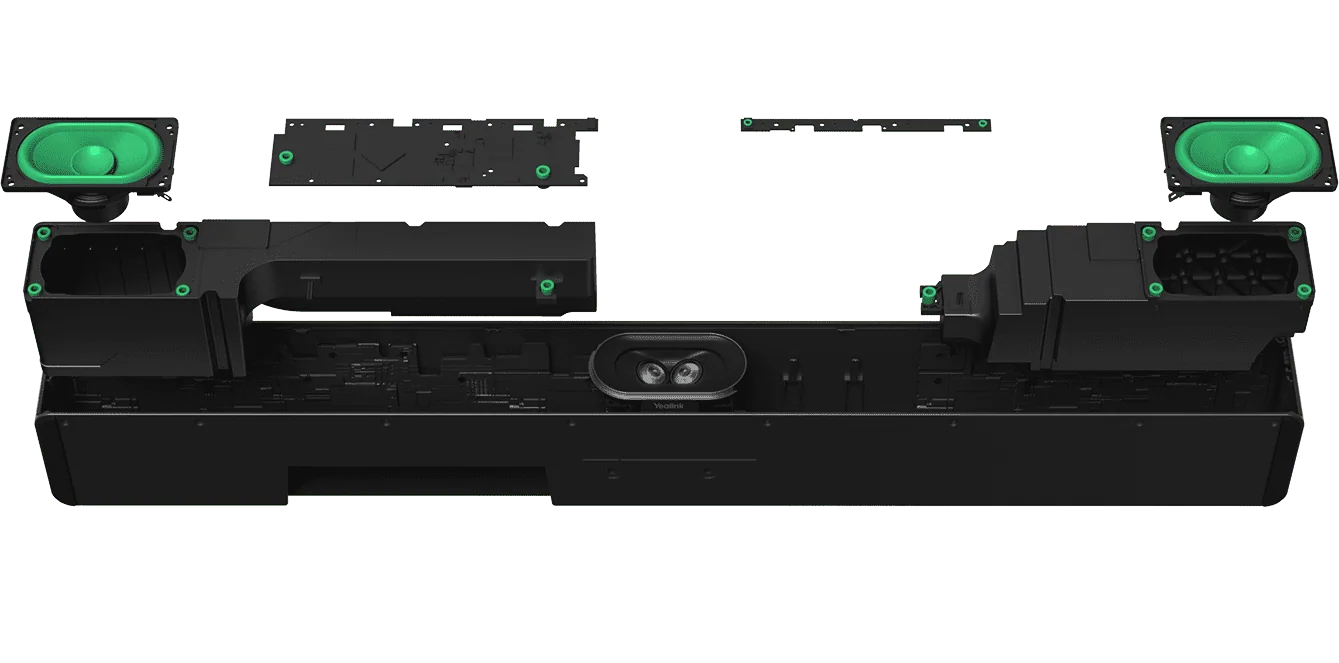

The SmartVision 40 is where the interesting engineering is. It carries two 48 megapixel lenses rather than one camera, and a 120 degree pickup range for audio. Two high-resolution lenses working together give a wide field of view without the barrel distortion a single ultra-wide lens produces, and the pixel count is what makes the AI features possible - because cropping a region of interest out of a 48 megapixel image still leaves a usable picture, whereas cropping a 1080p frame does not.

That is precisely what the AI functions do. IntelliFocus and Multi-stream IntelliFrame find the people in the room and frame them, and Multi-stream sends more than one framed view so the far end sees individual participants rather than a wide shot of a table with small figures around it. On a call between a site and a head office, that is the difference between a conversation and a surveillance feed. Video Fence sets a boundary the camera will not include - so a glass-walled room does not put people walking past into the meeting, and a room that backs onto a workspace does not broadcast it.

Two points for specification. This is a room system, so the licensing is part of it: Teams Rooms requires a per-room Microsoft licence, which is separate from the hardware and from users' own Teams licences, and it is the item most often missed in a budget. And the MVC S40 ships in several kit variants distinguished by their suffix, differing in what is bundled - so the exact part number determines what arrives in the box, and we confirm the contents of the specific variant at quotation.

Features

Certified Teams Rooms system. One-tap join and central management, not Teams running on a desktop PC.
Three purpose-built parts. MCore Pro compute, MTouch E2 console, SmartVision 40 audio and video.
Two 48MP lenses. Wide coverage without ultra-wide distortion, and the resolution that makes AI cropping usable.
120 degree audio pickup. Covers the room rather than the centre of the table.
Multi-stream IntelliFrame. The far end sees framed individuals instead of a wide shot of a table.
Video Fence. Excludes a defined area, so glass walls and adjacent workspaces stay out of the call.
Licence counted in. A per-room Microsoft licence is required and is the line most often missed.
Kit variant confirmed. The suffix determines what is bundled, so contents are checked at quotation.

Applications

Small to medium rooms standardising on Microsoft Teams.

Meeting rooms of four to ten. The size Yealink position the S40 for.
Head office rooms. Regular calls to sites and to clients.
Site and project offices. Joining head office meetings reliably.
Glass-walled rooms. Where Video Fence keeps passers-by out of the call.
Teams-standardised organisations. Rooms managed centrally with the rest of the tenant.
Rooms with poor attendance. Where one-tap join replaces a set-up ritual nobody follows.

Support & Documents

PT Vivo Asia Teknologi Indonesia supplies collaboration and recording equipment as a fitted, working room rather than as a boxed item. Our scope typically covers:

Room survey: seating, sightlines, acoustics and display sizing.
Selection to suit the room size and the platform you already run.
Mounting, cabling, power and network design, including any extension runs.
Supply, installation, termination and commissioning.
Enrolment into your tenant, room resource setup and device management.
User handover and training, with ongoing support and maintenance.

Model availability, licensing and electrical details vary by variant and are confirmed against the current manufacturer datasheet at quotation stage. Tell us the room dimensions, the seat count and the platform you use, and we will come back with the right configuration and a full bill of materials.

Use the enquiry button above for a datasheet, a specification or a project quotation.
